Product Description:
One of the standout features of this machine is its support for
various image and text formats, including AI, PLT, DXF, BMP, Dst,
DWg, LAS, and DXP. This makes it incredibly versatile and capable
of handling a wide range of cutting tasks.
In terms of precision, this machine does not disappoint. With a
chipping rate of ≤5μm and a positioning accuracy of ±2um, you can
expect clean, accurate cuts every time. This is essential for those
working with delicate or intricate glass pieces, where precision is
key.

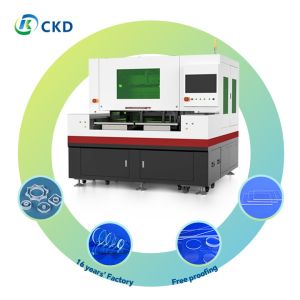

The CKD Laser Glass Cutting Machine is also known for its
exceptional beam quality. With an M^2 rating of less than 1.2, it
produces a high-quality beam that ensures smooth and consistent
cutting performance.
Overall, if you're looking for a reliable and precise glass cutting
machine, the CKD Laser Glass Cutting Machine is an excellent
choice. Its support for various image and text formats, precision
cutting capabilities, and exceptional beam quality make it a
standout product in the market. Invest in this machine today and
take your glass cutting game to the next level!
Features:
- Product Name: Laser Glass Cutting Machine
- Minimum Cutting Burr: ≤5um
- Positioning Accuracy: ±2um
- Material: Glass
- Wavelength: 1064nm
- Working Environment: 26℃
- Keywords: Fiber Laser Cutting Machine, Stained glass cutting
machine, Thick glass laser cutting machine
Technical Parameters:
| Drive Motor | XY Linear Motor + Grating Ruler |
| Minimum Cutting Burr | ≤5um |
| Splitting Laser Source Power | 150W (options: 250W/350W) |
| Working Voltage | 220V |
| Support Image and Text Formats | AI PLT DXF BMP Dst DWg LAS DXP |
| Chipping | ≤5μm |
| Cutting Thickness | 0.03~25mm |
| Material | Glass |
| Laser Type | Infrared Picosecond |
| Weight | 3500kg |
Applications:
- Stained glass cutting
- Optical glass cutting
- High precision glass cutting
- Industrial glass cutting
The CKD Laser Glass Cutting Machine comes in various models,
including the CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE,
CKD-DP6070C-50E, CKD-DP6070S-50E, CKD-DP6070S-60E,
CKD-DP6070S-80TE, CKD-DP6070S-80E, CKD-DP6070D-50E,
CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80E,
CKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE,
CKD-SP6070S-80E, CKD-SP6070D-50E, CKD-SP6070D-60E,
CKD-SP6070D-80TE, and CKD-SP6070D-80E, CKD-SP6070C-50E,
CKD-SP6070C-60E, CKD-SP6070C-80TE, and CKD-SP6070C-80E.
Each model has dimensions of 2150mm × 2080mm × 1960mm or 2550mm ×
2080mm × 1960mm, depending on the model selected. The CKD Laser
Glass Cutting Machine uses a splitting laser source Laser Type
RFC02 (Radio Frequency CO2) or Infrared Picosecond, which provides
high-precision cutting for various glass types. The machine is also
equipped with a transmission system of rack and pinion, which
ensures smooth and stable operation.
The CKD Laser Glass Cutting Machine supports a variety of image and
text formats, including AI, PLT, DXF, BMP, Dst, DWg, LAS, and DXP.
It also comes with ISO and CE certification, ensuring its quality
and safety. The minimum order quantity is one, and the price is
negotiable. The packaging is a wooden vacuum packaging, and the
delivery time is between 25-45 days. The payment terms are L/C and
T/T, and the supply ability is 60 sets per month.
