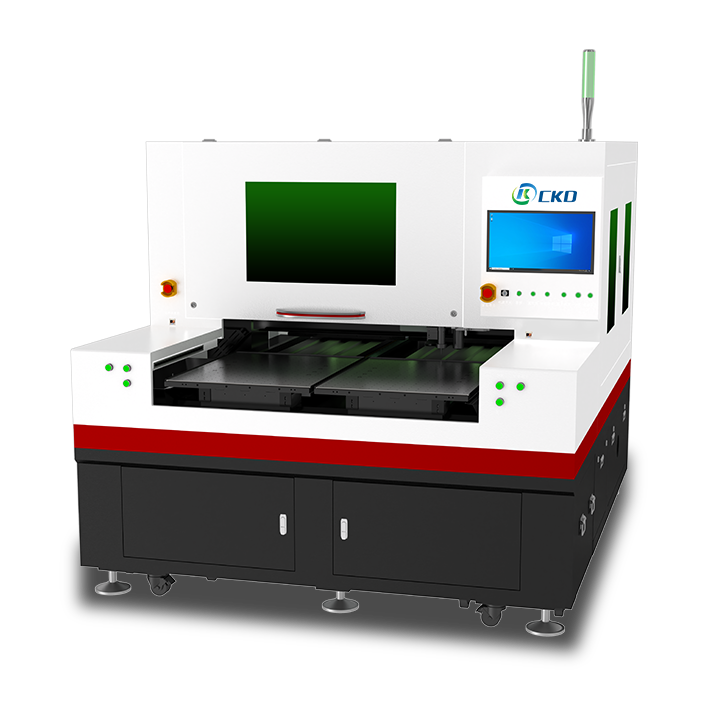

Product Description:
This device is an efficient cutting device that uses high-energy
lasers to cut glass. The cutting is aimed at shape processing and
CO2 laser assisted splitting is used to achieve glass cutting and
splitting. Cutting accuracy ± 0.01mm, edge breakage ≤ 5 μ m,
non-contact processing, no machine stress, low thermal impact,
smooth cutting surface without burrs, can be used directly, meeting
the cutting requirements of various types of glass.
Technical Parameters:
| Dimension | 2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm |
| Working Frequency | 50HZ/60HZ |
| Drive Motor | XY Linear Motor + Optical Grating Scale |
| Cutting Precision | ±0.01mm |
| Cutting Width | 0.03-25mm |
| Splitting Laser Source Cooling Method | Water Cooling |
| Wavelength | 1064nm |
| Cutting Thickness | 0.03~25mm |
| Positioning Accuracy | ±2μm |
| Supported Image and Text Formats | AI, PLT, DXF, BMP, Dst, DWG, LAS, DXP |

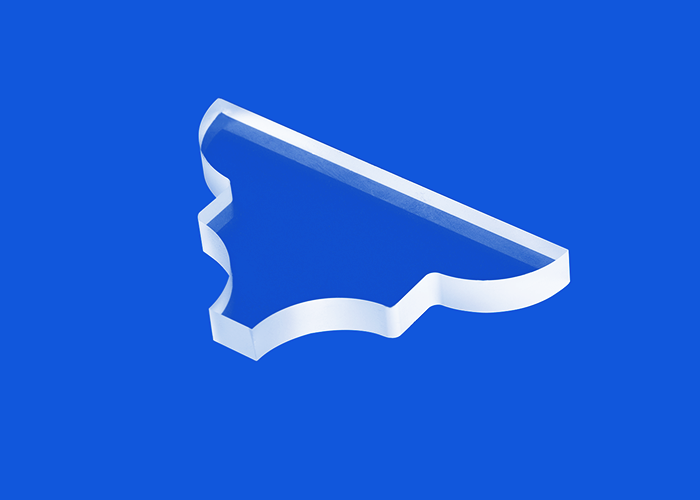

Samlpe:
Can process "ultra-clear glass, regular white glass, high boron
silicate glass, quartz stone glass", etc., mobile phone cover, car
glass cover, camera glass cover, etc., mobile phone sapphire cover,
camera sapphire cover, sapphire light strip, K9 glass, filter film
cutting, reflector cutting, etc. Optical glass.
Introduction to the company:
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd. was
established in 2010. lt is a Ultrafast laser equipment manufacturer
and automation new intelligent manufacturing solution provider that
integrates R&D, production, sales, and service. After more than
ten years of deep cultivation and accumulation, the company has
accumulated more than 70 patents, passed CE certification,1S09001
quality management system certification, and Intellectual Property
Management System Certification. lt is a national high-tech
enterprise and a Shenzhen Professional, Refined, Special, and
Innovation Enterprise.
The company has a sheet metal workshop, machining workshop,
assembly workshop, and process development and debugging workshop,
covering R&D, Production, Testing, Sale & after service.
Up to now, the company has strong R&D team that has been
engaged in laser structural design and laser application technology
for many years. With a strong R&D ability and core software
technology, the company has achieved innovation and break-through
in product technology in fields such as ultra fast laser cutting,
laser drilling, TFT-LCD screen laser repair, semiconductor plastic
sealing and debonding, diamond grinding, laser welding, and laser
marking. Especially in the processing of hard and brittle materials
such as glass and ceramics, TFT-LCD repair, semiconductor plastic
sealing and debonding, as well as diamond grinding and other
automated new intelligent manufacturing, we provide cus- tomers
with low-cost, high-quality, and high-efficiency solutions,making
contributions to customer with value-added,innovation,and
development.
Packing and Shipping:
Product Packaging:
The Laser Glass Cutting Machine is carefully packed to ensure safe
delivery. It is first wrapped with protective foam and bubble wrap
to prevent any damage during transit. The machine is then placed
inside a sturdy wooden crate or reinforced cardboard box, depending
on the shipping requirements. All accessories and components are
securely packed in separate compartments or boxes within the main
packaging. Clear labeling and handling instructions are affixed to
the exterior to guide safe handling.
Shipping:
We offer worldwide shipping for the Laser Glass Cutting Machine
through reliable freight carriers. Shipping options include air
freight, sea freight, and express courier services, depending on
your urgency and budget. Each shipment is accompanied by all
necessary documentation, including a packing list, invoice, and
certificate of origin. We ensure that the machine is insured during
transit for your peace of mind. Our logistics team coordinates
closely with the carrier to track the shipment and provide timely
updates until delivery is completed.
