| Laser Type | CO2 Laser |
| Laser Power | 30W |
| Cooling Mode | Air Cooling |
| Graphic Format Supported | AI / PLT / DXF / BMP / Dst / Dwg / LAS / DXP |
| Working Accuracy | 0.1mm |
| Laser Source Brand | Raycus |
| Weight (KG) | 55 KG |
| Marking Area | 110mm*110mm(Customized) |
| Control Software | EZCAD |
| Power supply | 110V / 220V 50Hz / 60Hz 2kVA |
| Working area | 175*175mm |
| Marking Depth | 0.01- 2 mm |
APPLICATION
Hotels, Garment Shops, Building Material Shops, Manufacturing
Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,
Restaurant, Home Use, Retail, Food Shop, Printing Shops,
Construction works , Energy & Mining, Food & Beverage Shops, etc.
PRODUCT DESCREPTION

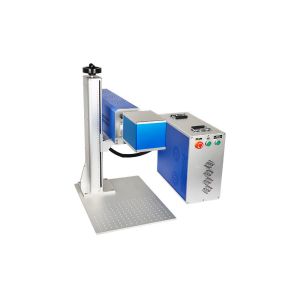

PORTABLE TYPE FIBER LASER MARKING MACHINE WITH JPT / MAX / RAYCUS
SOURCE
1.MODEL: Fiber laser marking machine
2.Applicable materials:
various metal, such as silver, alloy, aluminium, stainless steel,
copper etc, and some PVC, PC, black acrylic
3.Applicable industry:
Widerly applying for electronic, jewelry, automobiles,
communication products, plastic buttons, IC etc.
WHAT CAN THE MACHINE DO
SINO-GALVONAMETERS
High speed scanning
galvanometer with SINO technology
fast marking apeed
high precision
Optical double red light
Configure with double light easy to find the right focus length,
but needs to add some cost
JCZ Main board
Meanwell power supply configured with high precision
Laser device / Source
JPT / Max / Raycus / IPG can be chosen
Ruler
High precision ruler
accurate view of fixed size
more precise and detailed
Working table
Aluminum working table. Flat and smooth, compact structure,
flexible processing direction adjustable control.
Lifting handle
High quality and stable adjust the up and down for different height
material marking
Control button
Humanized control system, easy to operate, safe and convenient,
dust proof design
Standard Accessories
1.foot switch
2.CD disk
3.POWER CABLE
4.Wrench
Optical
1. Complex rotary for irregular shape, but can only hold 60mm, need
to buy
2. Ring rotary for ring, need to buy
PACKAGE AND SHIPMENT
1.We have three layers package. For the outside, we adopt wood
craft case. In the middle, the machine is covered by foam, to
protect the machine from shaking. For the inside layer, the machine
is covered by thickening plastic bag for waterproof.
2.Air-worthy packing or Sea packing which with international
standard.
SERVICE
1. one year quality guaranty, the machine with main parts shall be
changed free of charge when if any problem during the warranty
period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. For free sample testing, please send us your file, we will do
marking here and make video to show you the effect, or send sample
to you for checking quality.
FAQ
Q1. What support do I get with my laser machine?
A1: All of our machines come with unlimited, lifetime support.
Q2, Do I need special technicians to run a laser?
A2: No. We will give you full training on how to use your new laser
machine and the software provided, and how to carry out the basic
routine maintenance.The training is easy to understand and the
laser machine is simple to operate.
Q3, What do I need to get started with a the laser?
A3: The space for the machine to stand, a computer for your laser
machine to run off, the sockets for the laser equipment to connect
to, and yourself for the training
Q4. How long is the delivery time?
For standard machines, it would be 10-15 days; For nonstandard
machines and customized machines according to clients specific
requirements, it would be 15 to 35 days.
